🔹Solar Panel

Rate Power: 12W

Power Range: 12W - 300W

Output: DC 18V + USB 5V

Dimensions: 280*280mm

🔹SOECOPO Charge Controller

Voltage: Auto 12V/24V Detection

Charging Current: 30A-100A

Display: Real-time Voltage/Current Monitoring

Operating Temp: -35°C to +60°C

🔹Pure Sine Wave Inverter

Continuous Power: 1400W

Peak Power: 15000W

Input: DC 12V

Output: AC 220V/110V

Efficiency: >90%

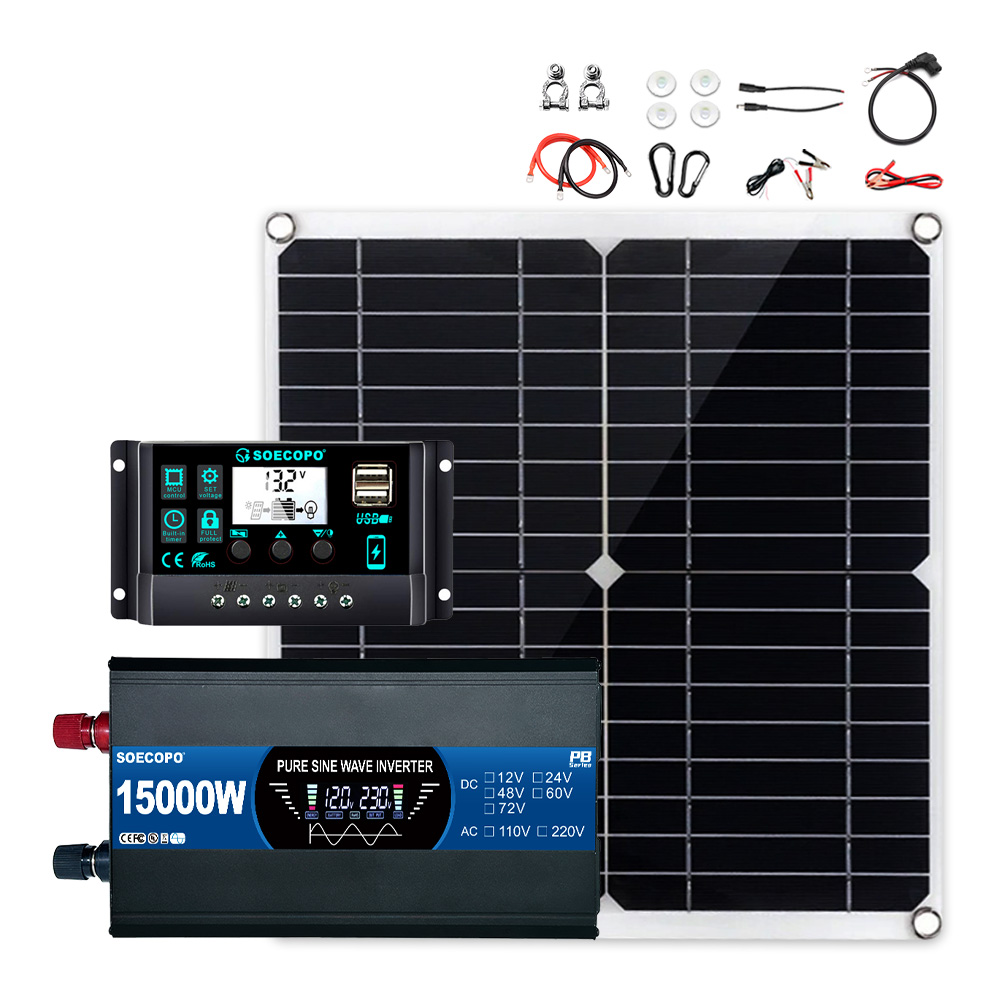

🌟Package list

Solar Panel ×1

SOECOPO Charge Controller ×1

Inverter ×1

Accessories:

（1）Controller Alligator Clips ×1

（2）Inverter Alligator Clips ×1

（3）DC Cables (Red/Black) ×2

（4）Carabiners ×2

（5）Suction Cups ×4

（6）Car Inverter Cable ×1

（7）User Manual ×1

SOECOPO 15000W Solar System Pure Profound Wave Inverter Kit!🌞

Sunshine accompanies, worry free electricity 💫

Core advantages 👍

（1） Pure sine wave inverter

🔌Compatibility: Suitable for all electrical appliances; Correcting string waves can easily cause motor and precision equipment to malfunction.

🛡Protection equipment: no clutter, extending the lifespan of electrical appliances; Correct the presence of clutter in the string wave and accelerate component aging.

⚖Strong stability: stable operation; Correcting string waves can easily lead to shaking and overheating.

⚡Efficiency and interference: energy-saving, no electromagnetic interference; Correcting the power consumption of string waves and interfering with communication equipment.

（2） Solar power generation system

🌱 Energy characteristics: clean and environmentally friendly, inexhaustible energy, helping to achieve energy self-sufficiency.

💰 Cost and Scenario: Reduce electricity costs, adapt to various outdoor scenarios, and provide convenience for outdoor electricity use.

📦Package Contents

✅ Solar Panel🌞 ×1

✅ SOECOPO Charge Controller📟 ×1

✅ 15000W Inverter🔌 ×1

✅ Accessories🧰:

（1）Controller Alligator Clips ×1

（2）Inverter Alligator Clips ×1

（3）DC Cables ×2

（4）Carabiners ×2

（5）Suction Cups ×4

（6）Car Inverter Cable ×1

（7）User Manual ×1

⚠️ Batteries not included (user-provided).

1、 Core parameters

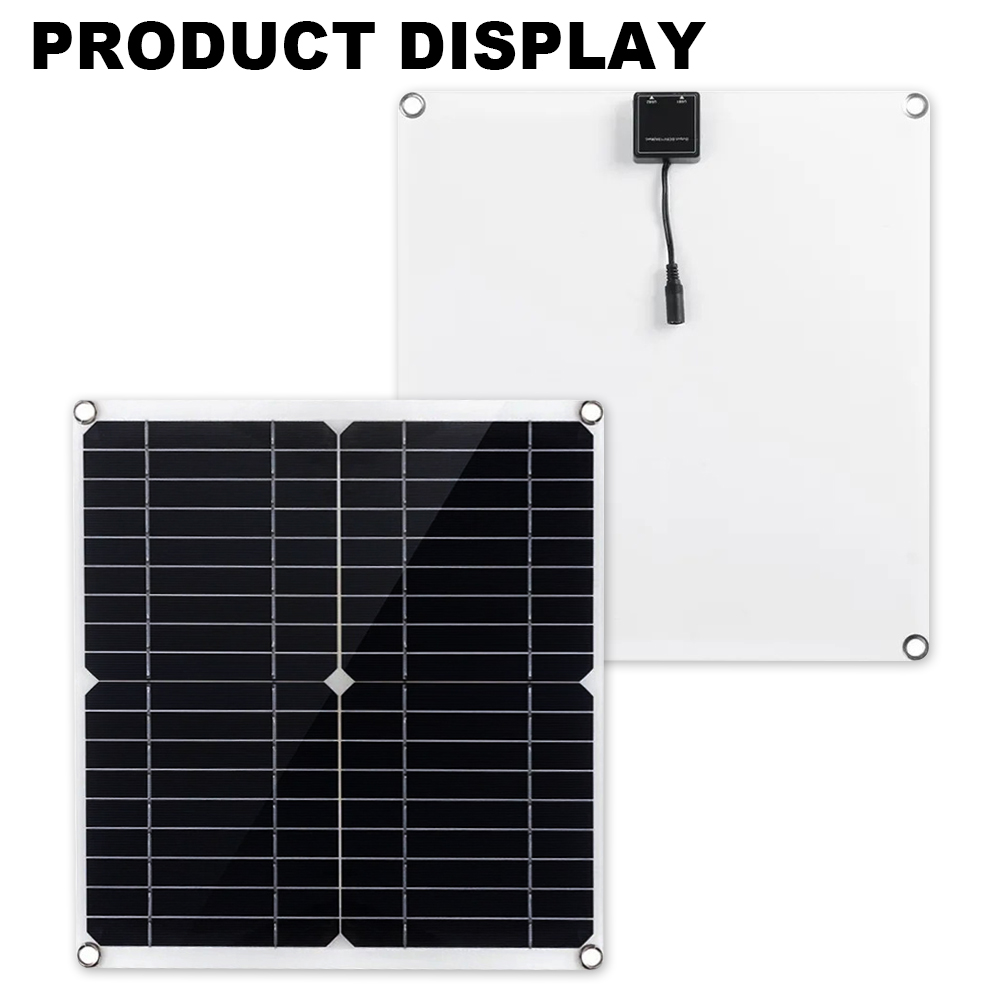

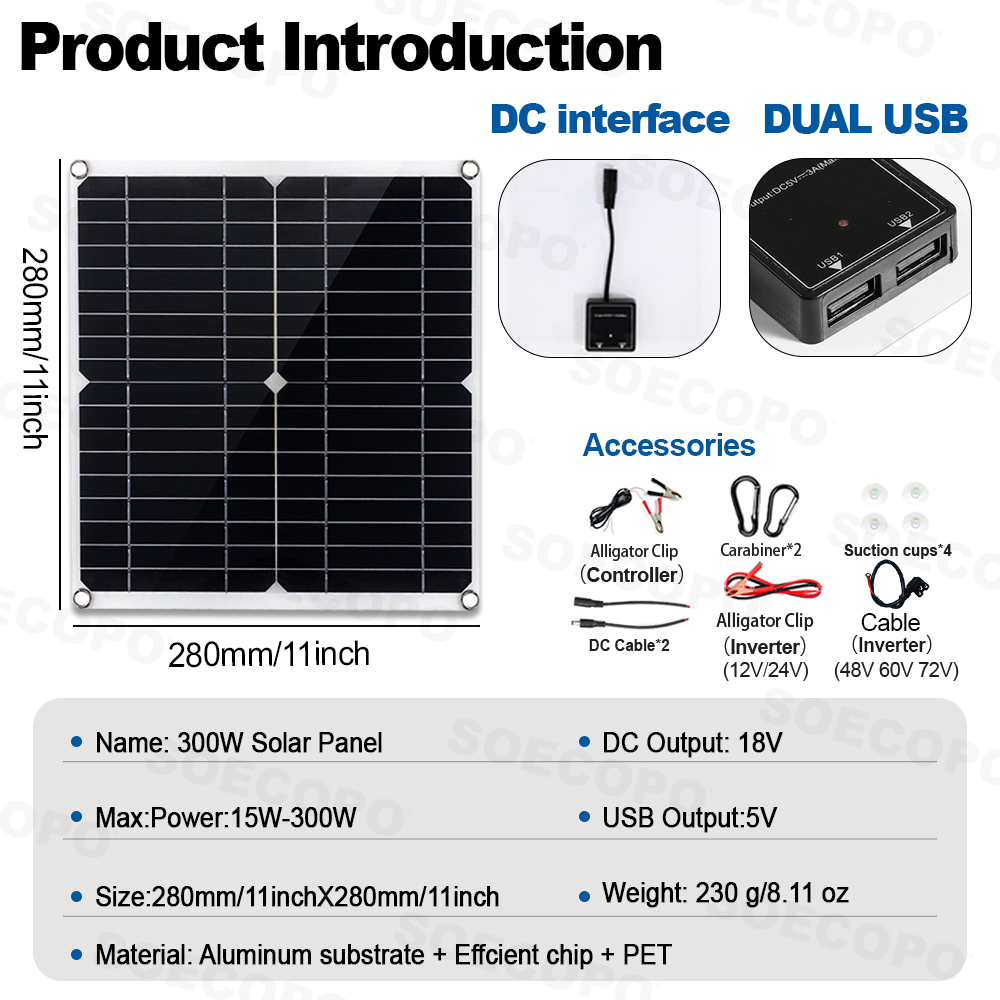

（1） Solar panels

🔋 Maximum power: 12W-500W

📏 Size specification: 280mm× 280mm

⚡ DC output: 18V

🔌 USB output: 5V

🧱 Material: Aluminum substrate+high-efficiency chip+PET

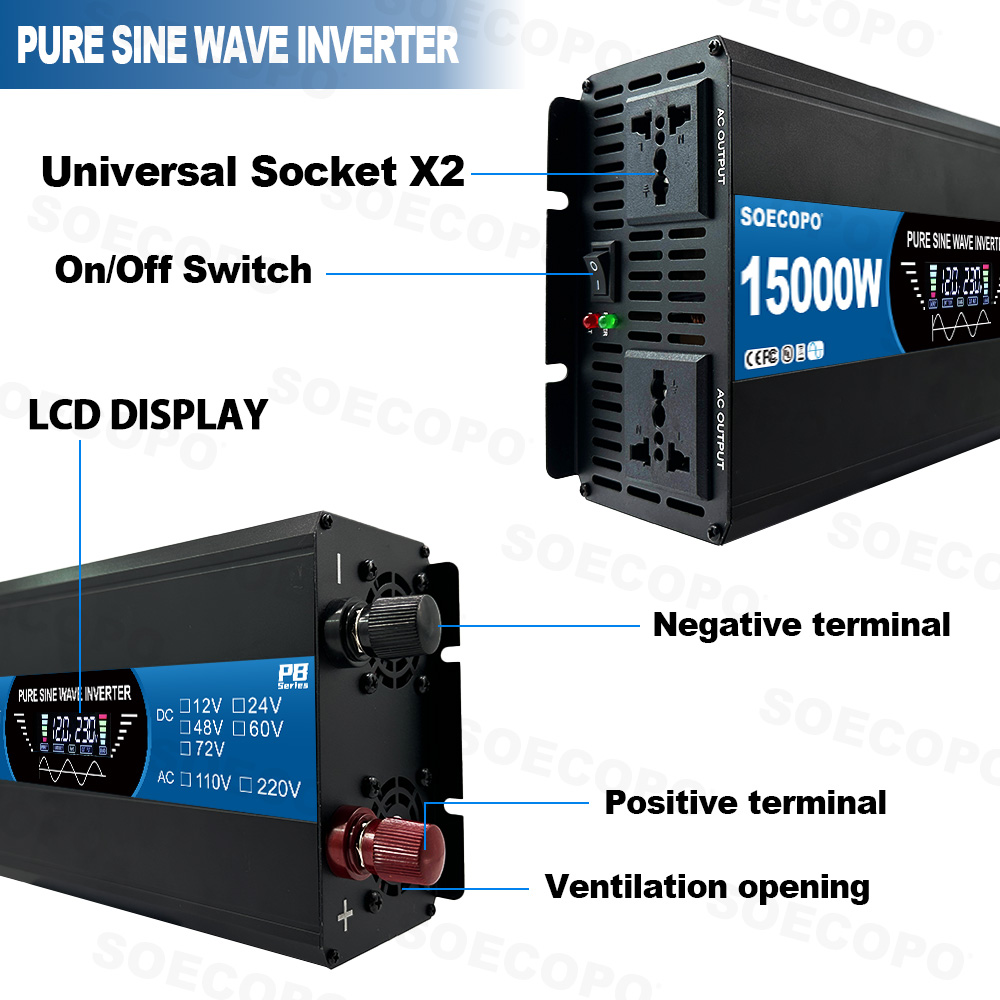

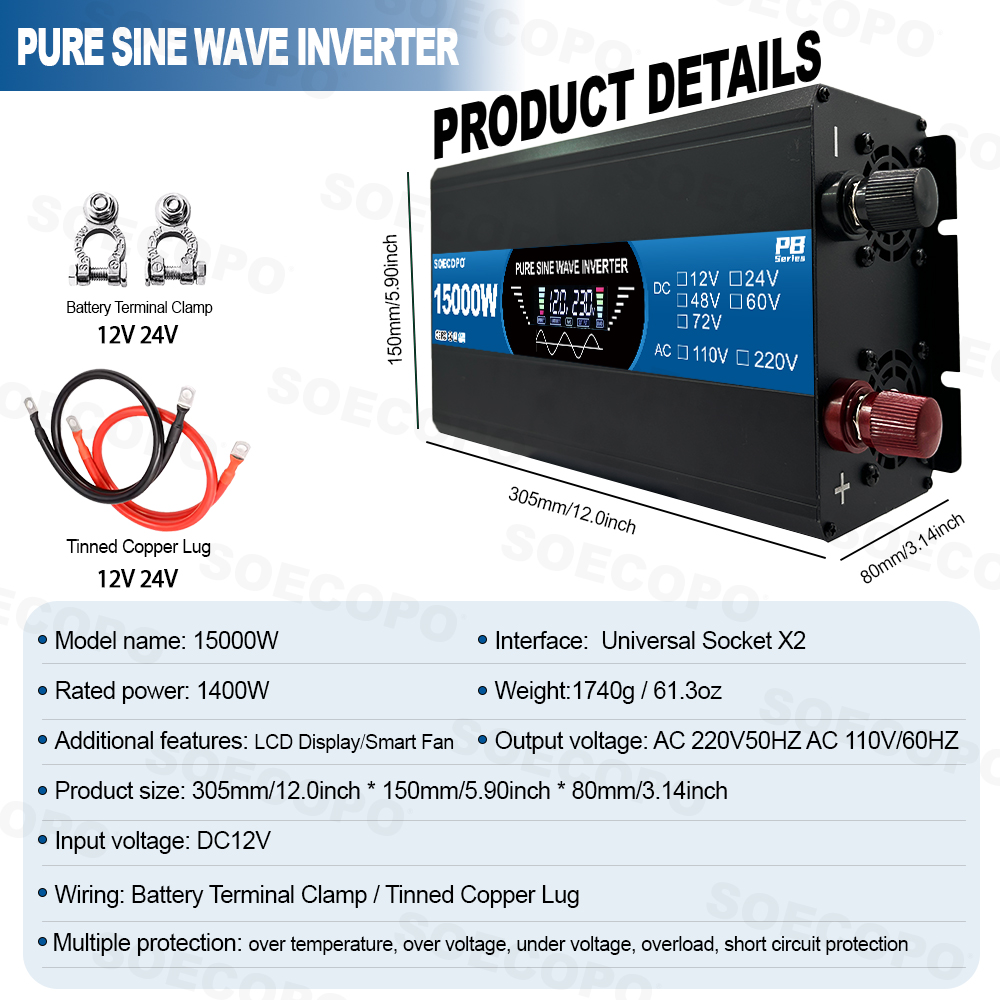

（2） Pure sine wave inverter

🔋 Rated power: 1400W

🔌 DC input: 12V

🔌 Communication output: AC output 220V 50Hz/110V 60Hz

🌊 Output waveform: pure sine wave

🛡️ Protection functions: overvoltage, undervoltage, overload, short circuit, over temperature protection, etc

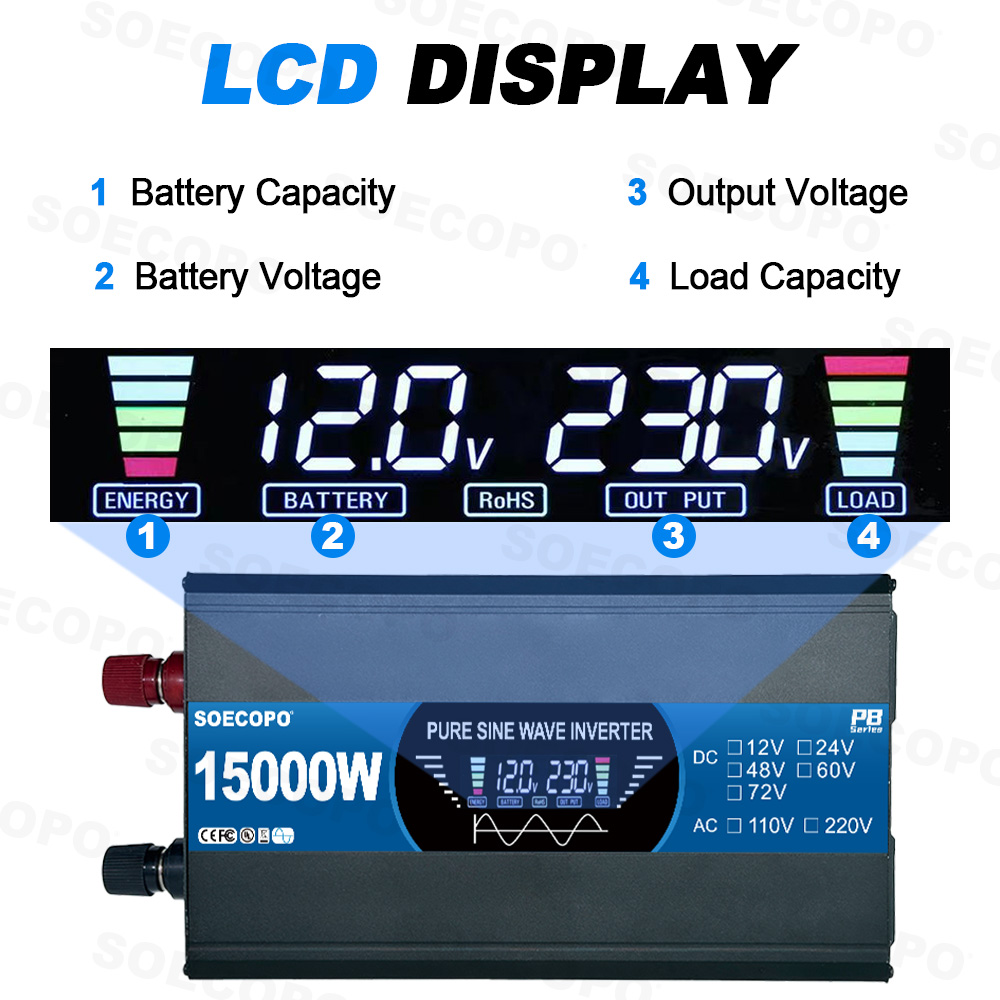

📊 Additional features: LCD display screen, intelligent temperature control fan

(Note that 15000W is the peak power of the inverter, and the total load cannot exceed 1400W)

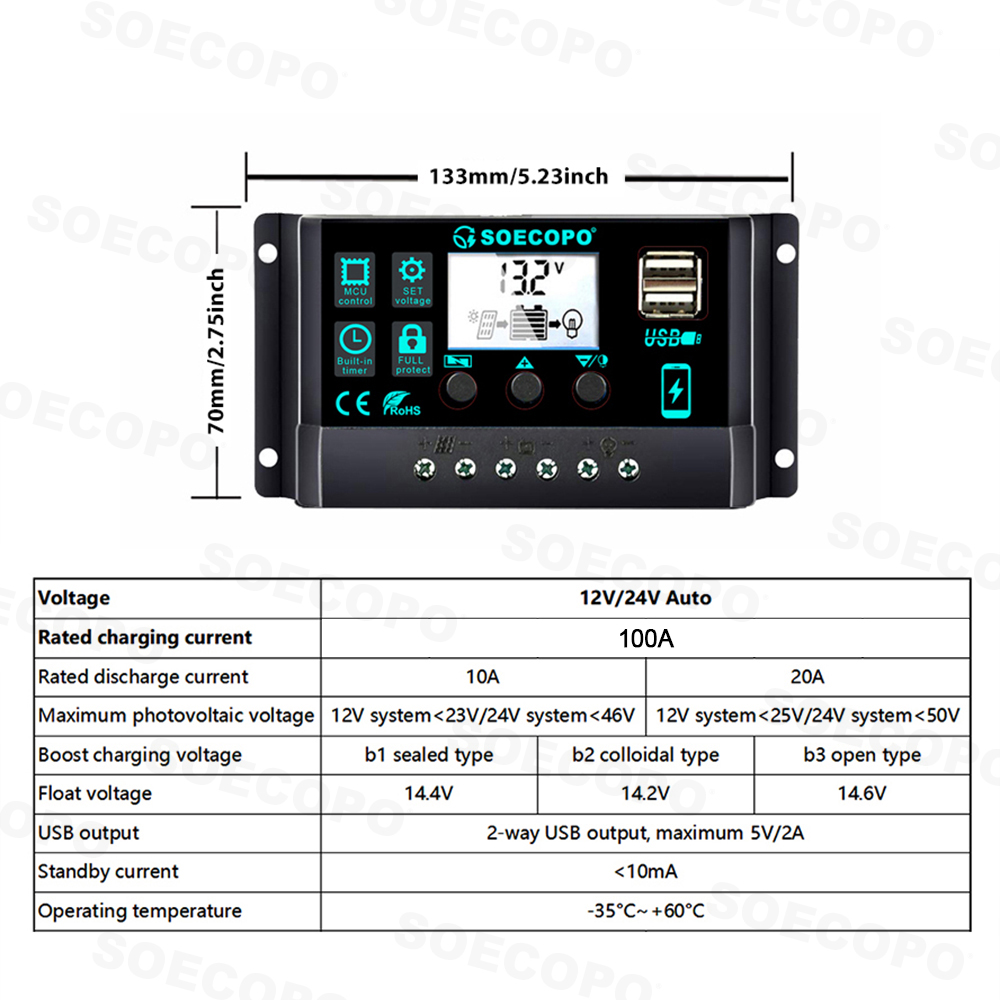

（3） Solar controller

🔋 Voltage adaptation: automatic recognition of 12V/24V

⚡ Rated charging and discharging current: 100A

🔌 USB output: 5V/2.1A × 2

🌙 Standby power consumption: ≤ 0.5W

🌡️ Working temperature: -35 ℃ to+60 ℃

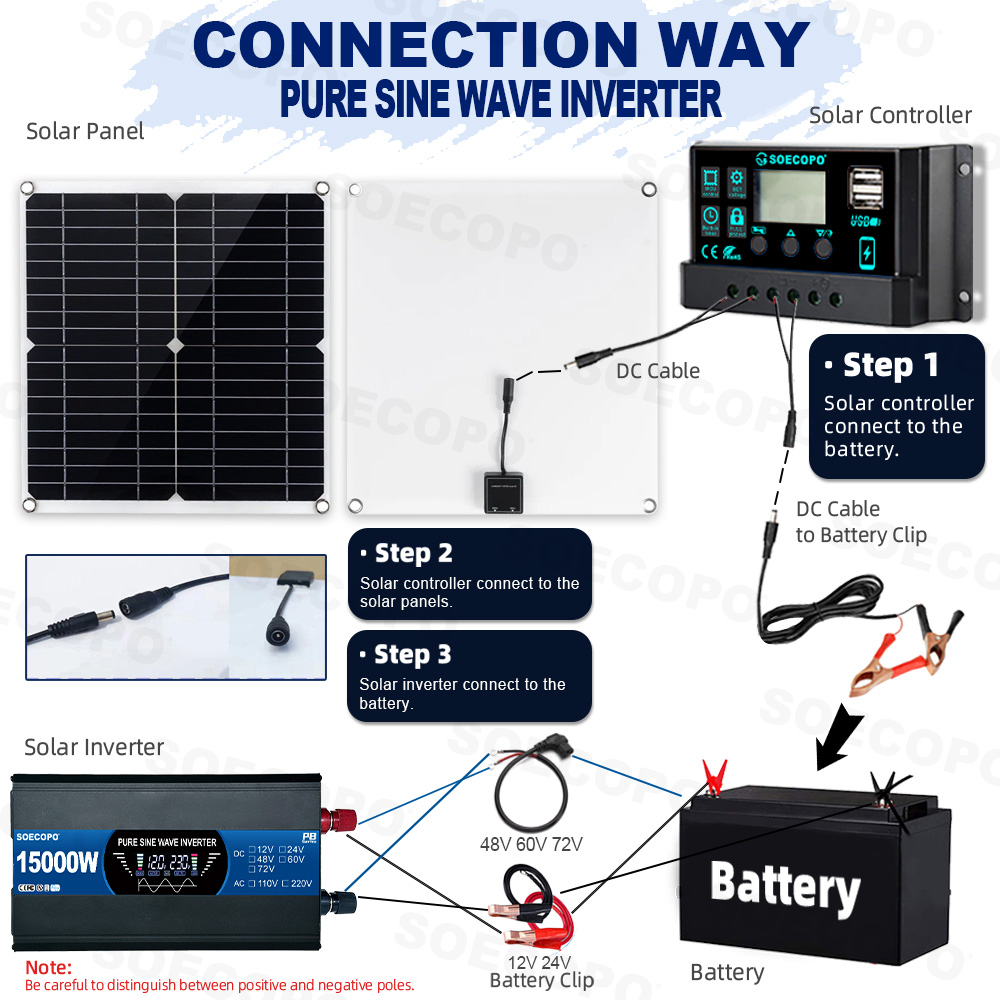

2、 Connection method

（1） Three step system connection method

Step 1: Connect the solar controller to the battery and have the controller recognize the voltage of the battery.

Step 2: Connect the solar controller to the solar panel to complete the preparation for solar energy collection.

Step 3: Connect the solar inverter to the battery to complete the conversion of electrical energy and prepare for output.

⚠️ Attention: When connecting, pay attention to the distinction between positive and negative poles.

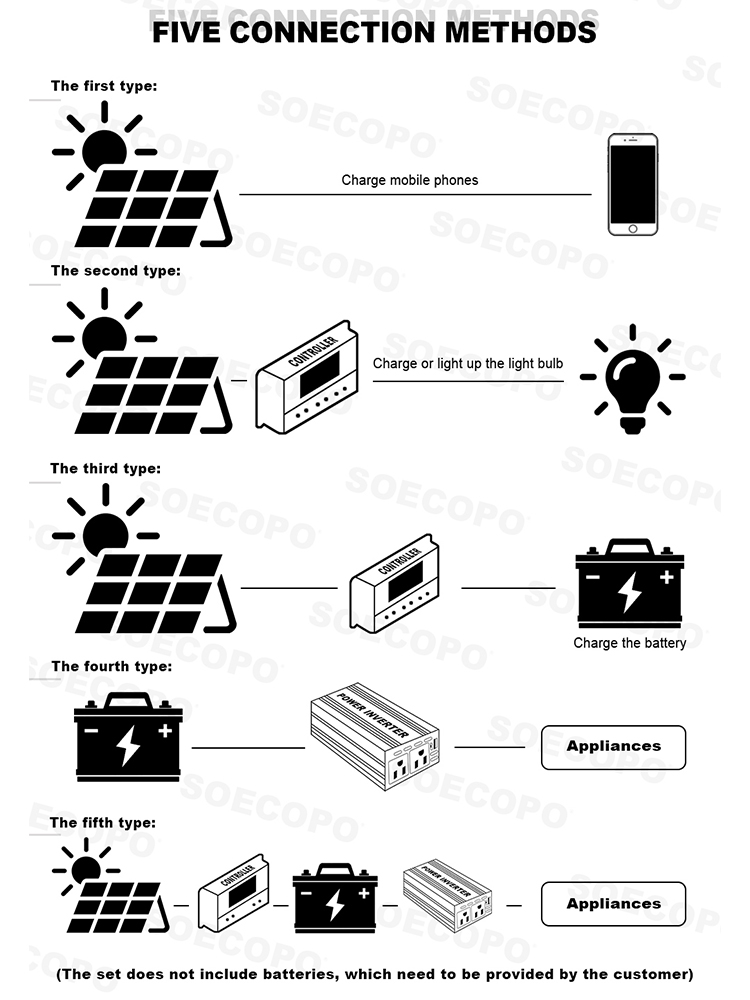

（2） Five connection methods

▶ 1.Solar panel → Mobile phone

🔗 Connection operation: Connect directly

🏞️ Applicable scenario: Mountaineering

✨ Effect: Continuous charging

👍 Advantages: Ensuring communication and navigation

▶ 2.Solar panel → controller → rechargeable light bulb/mobile phone

🔗 Connection operation: Connect the solar panel to the controller, then connect the light bulb or mobile phone

🏕️ Applicable scenario: Camping

✨ Effect: Lighting, Charging

👍 Advantages: Good contact and more stable

▶ 3.Solar panel → Controller → Battery

🔗 Connection operation: Connect the solar panel to the battery through the controller

🌊 Applicable scenario: Beach picnic

✨ Effect: Charging and Storage

👍 Advantages: For future use, ensure smooth contact inspection

▶ 4.Battery → Inverter → Home Appliances

🔗 Connection operation: Battery connected to inverter connected to household appliance

🔌 Applicable scenarios: Outdoor electrical appliances

✨ Effect: Drive air conditioning, microwave oven, etc

👍 Advantages: Enjoy a home experience, with completely more reliable contact

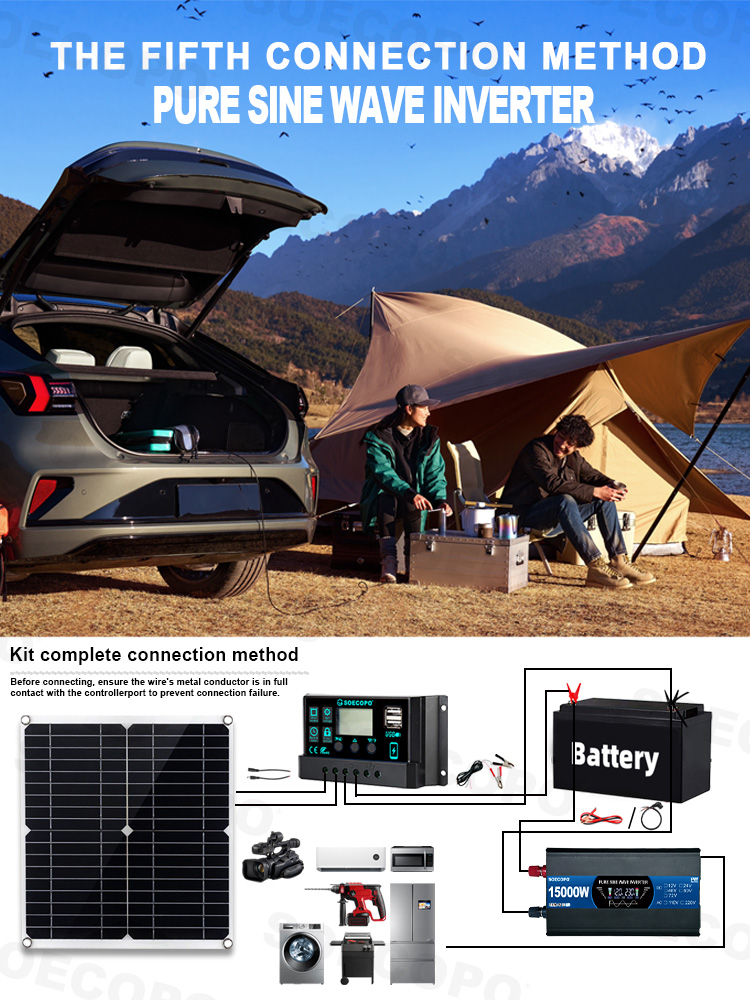

▶ 5.Solar panel → controller → battery → inverter → household appliance

🔗 Connection operation: Connect sequentially and then connect the household appliances

🔌 Applicable scenario: Outdoor combined electricity consumption

✨ Effect: Stable operation of various household appliances

👍 Advantages: Rich electricity experience, sufficient contact to ensure high efficiency

3、 Widely used scenarios

Scenario 1: Camping, providing energy for lighting and charging equipment.

Scenario 2: Climbing mountains to ensure power supply for communication equipment.

Scenario 3: Walking in the desert, exploring upstream streams, and cycling in the mountains to meet the electricity needs of various small equipment.

Scenario 4: Surviving on a deserted island, becoming an important source of energy to help tackle outdoor challenges.

Scenario 5: Outdoor combined electricity usage, allowing various electrical appliances to operate stably and enjoy a rich electricity experience.

4、The solar system kit is compatible with electrical appliances (Used with Corresponding Batteries) 🔌

Daily household appliances：

Mobile/tablet charger（5-10W）

Notebook computer（60-120W）

fridge（80-250W）

microwave oven（700-1200W）

Electric fan (floor standing)（40-80W）

Television (55 inches)（50-150W）

Wall mounted air conditioner (1 horsepower) ❄（800-1200W）

Mobile air conditioner (1 horsepower) ❄（900-1200W）

⛺Outdoor camping equipment ⛺

electric oven（800-1200W）

projector（80-200W）

Coffee Machine ☕ （600-1200W）

Outdoor power light（5-30W）

Drone charger（50-100W）

Small tool equipment electric drill（300-600W）

Percussion drill ⛏️ （800-1200W）

Electric Wrench ⚙️ （200-500W）

water pump（500-1200W）

(The above power is a reference value for common equipment, and the actual electrical labeling shall prevail)

📖 Installation and use must read

🔧 Installation guide: Please refer to the manual for detailed connection steps between the solar panel and the controller. Follow the diagram for more secure operation!

⚡ Operating premise: The controller must be connected to a battery in order to function properly. Without this link, it cannot be started.

🌞 Power generation conditions: Solar panels need to be exposed to sunlight and should not be placed behind window sills or glass, as obstruction can significantly reduce power generation efficiency!

🛡️ Maintenance precautions: It is forbidden to scratch the surface of the panel with sharp objects. Please take care of it carefully during daily use.

🔋 Charging points: When using, place the solar panel facing upwards and facing direct sunlight to maximize the charging effect.

(If the surface of the received solar panel is scratched, the protective film on the surface can be peeled off）

🔋Choose the right battery

For the inverter, it is particularly important to choose a suitable battery ⚡. If your battery capacity is too small and the output power is insufficient, the maximum output power of the inverter will be affected by the maximum output power of the battery.

Q1: If you already have a battery, how do you know the maximum power output of your battery?

Battery maximum output power = U (battery voltage) * I (battery capacity) * 0.72

Q2: If you don't have a battery, how much battery capacity do you need if you want the inverter to output maximum power?

Battery capacity = Inverter maximum output power / U(Battery voltage) / 0.72

Maximum output power of common capacity batteries 📊

For 12V batteries 🔋:

70AH battery: Maximum battery output power is 604W ✨.

100AH battery: Maximum battery output power is 864W ✨.

150AH battery: Maximum battery output power is 1296W ✨.
