- Size: 540*280mm
- Maximum power: 30W-500W
- Max Current: 30A

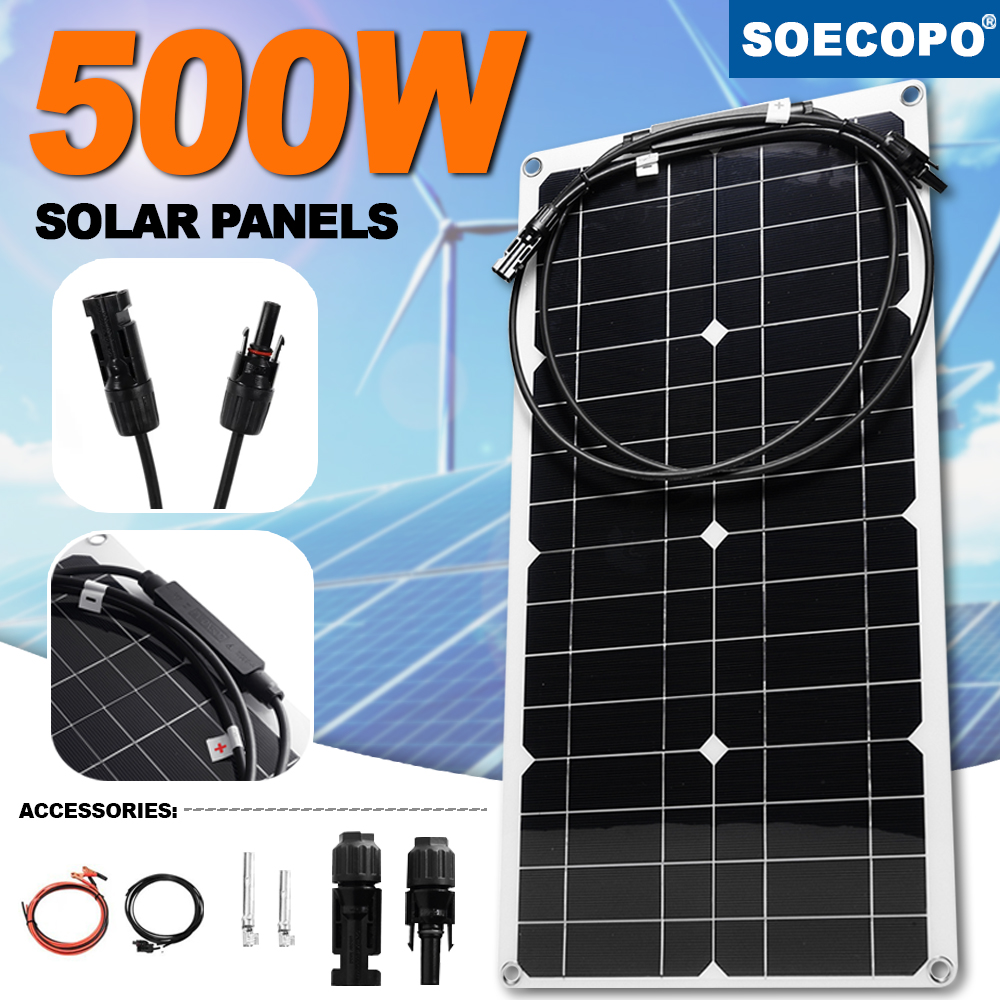

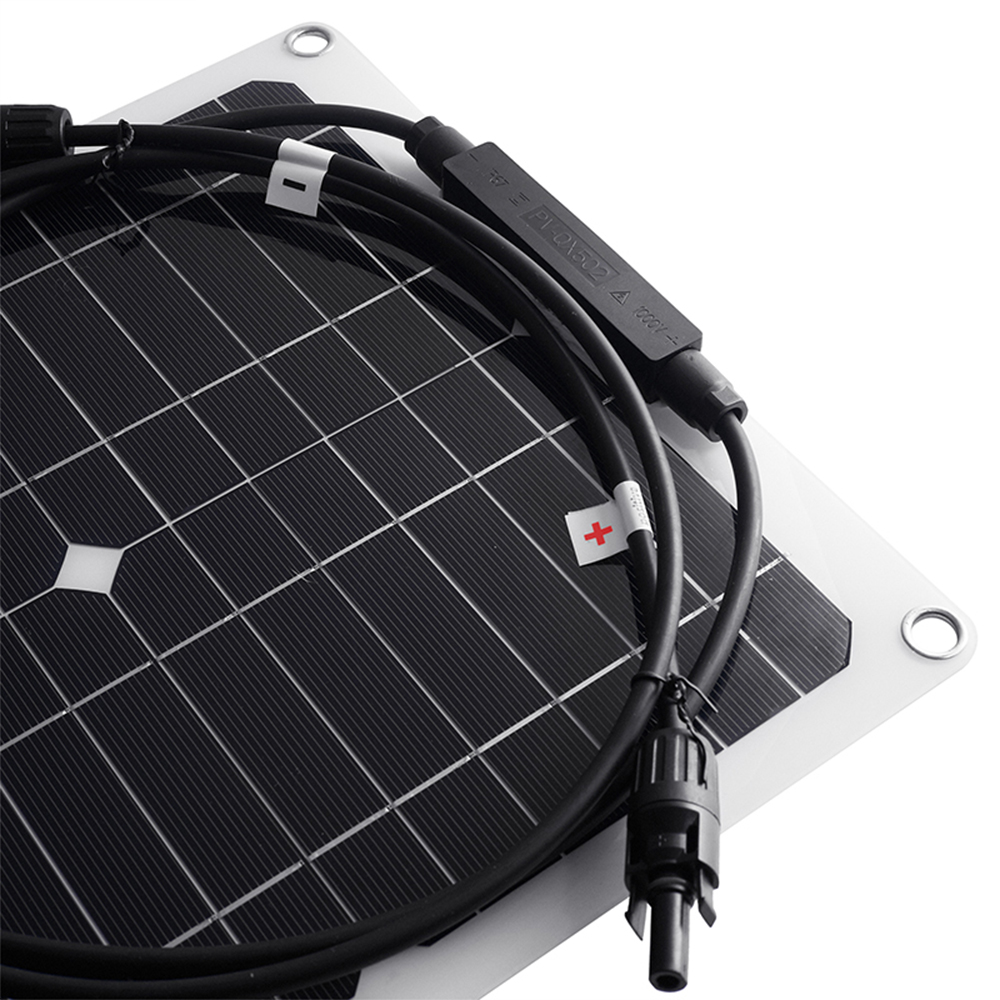

500W Solar Panel Flexible Panel + With Universal Solar Connector for RV/Boat/Off-Grid｜CE Certified
⚡Cable Compatibility：4-6mm² (10-12 AWG)
Operating Temp -40°C to +105°C (-40°F to 221°F)

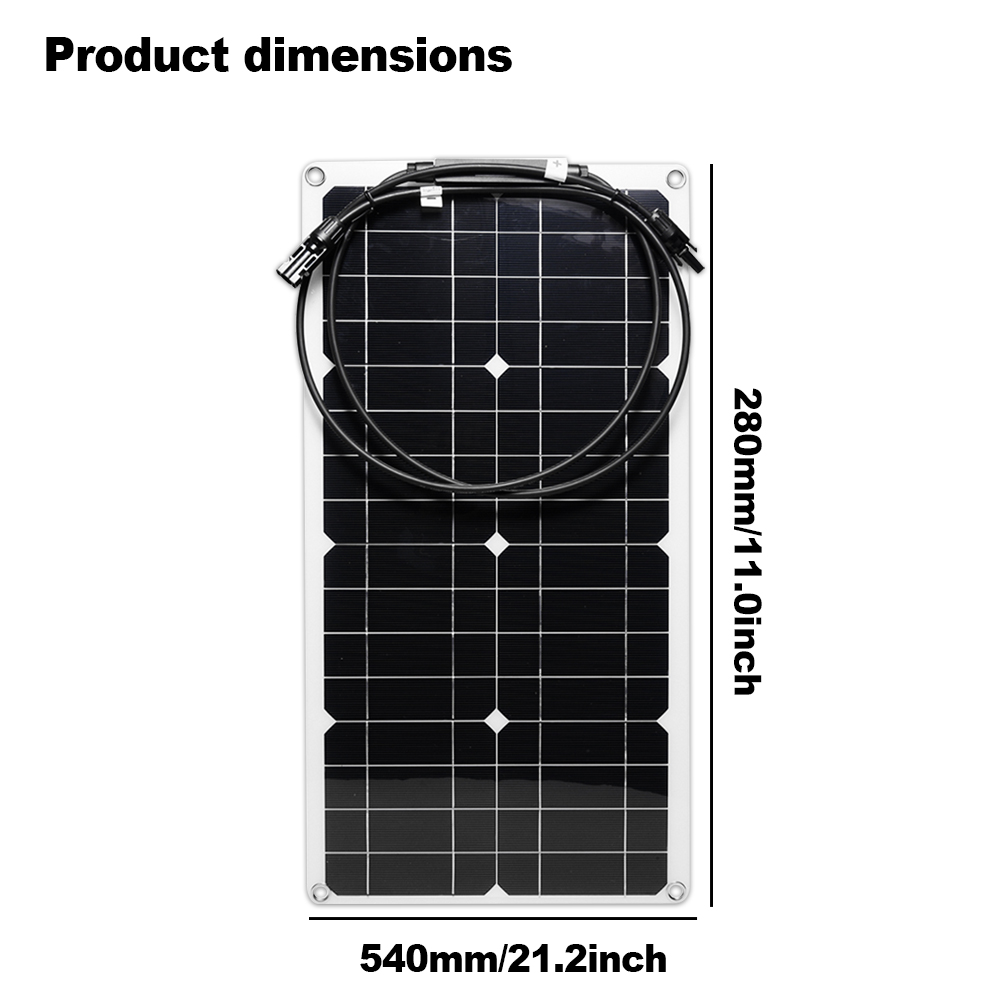

⚡Dimensions：540x280mm (14.9"x11.0")
⚡Package：1 Sets/Carton
⚡Maximum power: 30W-500W

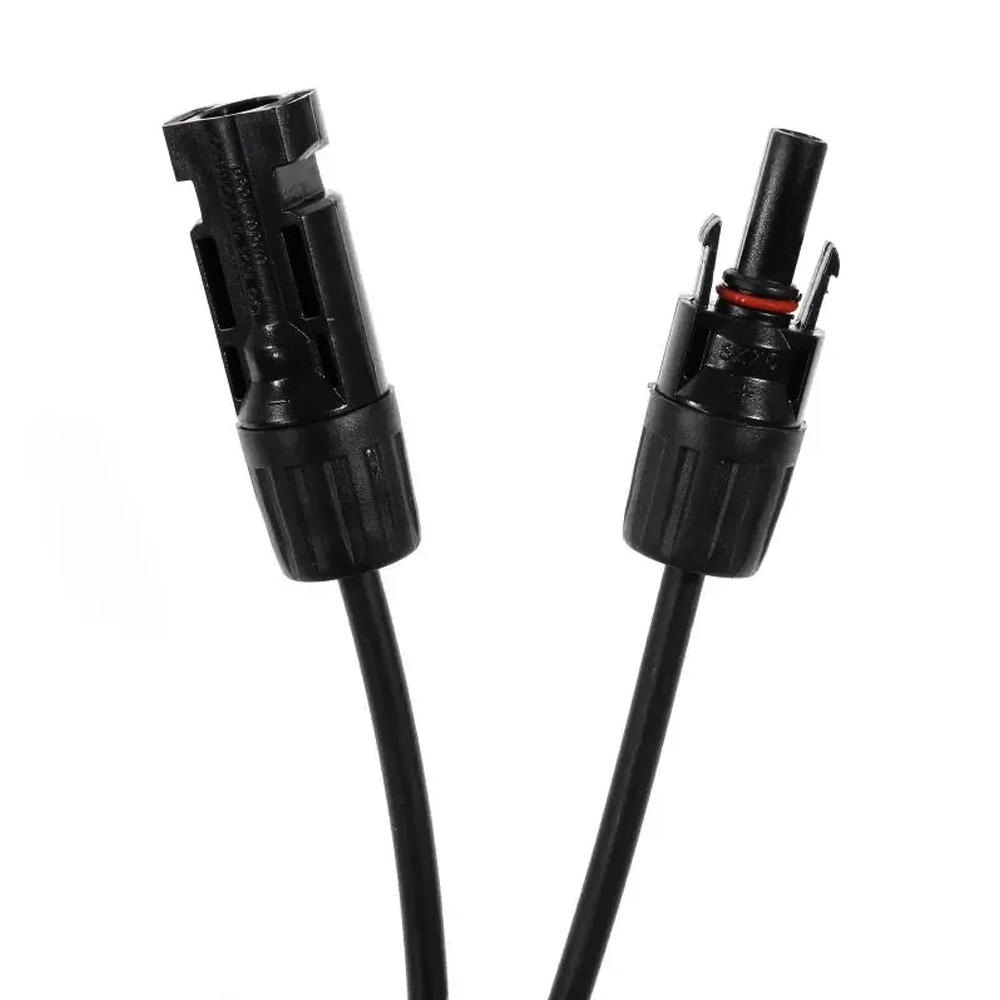

Industry-Standard Interlocking Photovoltaic Plugs - Copper Core, Extreme Environment Ready
Universal Solar Connector Kit - IP67 Waterproof,
🌟 Core Advantages
1. Military-Grade Durability
✅ 10,000+ bend cycles (test video available)
✅ UV-3000h resistant - survives desert/coastal environments
✅ Chemical corrosion-proof - resists battery acid & salt spray
2. Zero Power Loss Design
⚡ Tinned copper core (0.35mΩ resistance)
🔋 23% lower heat vs. aluminum connectors (IR thermal comparison chart)
3. Foolproof Installation
🔒 Audible "click" lock (70kg pull-force resistance)
🛠️ Tool-free assembly - 3-second connection
⚠️ Critical Precautions
DO ✅
Use certified cables (UL/TUV)
Apply dielectric grease
Check polarity pre-connect
Store in dry conditions
DON'T ❗
Exceed 30A current load
Submerge >30 mins
Use with damaged cables
Install near flammable gas
🛠️ Installation Guide
🔋Strip 15mm cable insulation
🔋Crimp terminal with 6mm² die (8-10kN pressure)
🔋Insert until "click" confirms lock
🔋Test continuity with multimeter
🌍 Real-World Applications
1. Residential Solar Systems
*Connect rooftop panels to inverters during power outages - IP67 rating withstands monsoons*

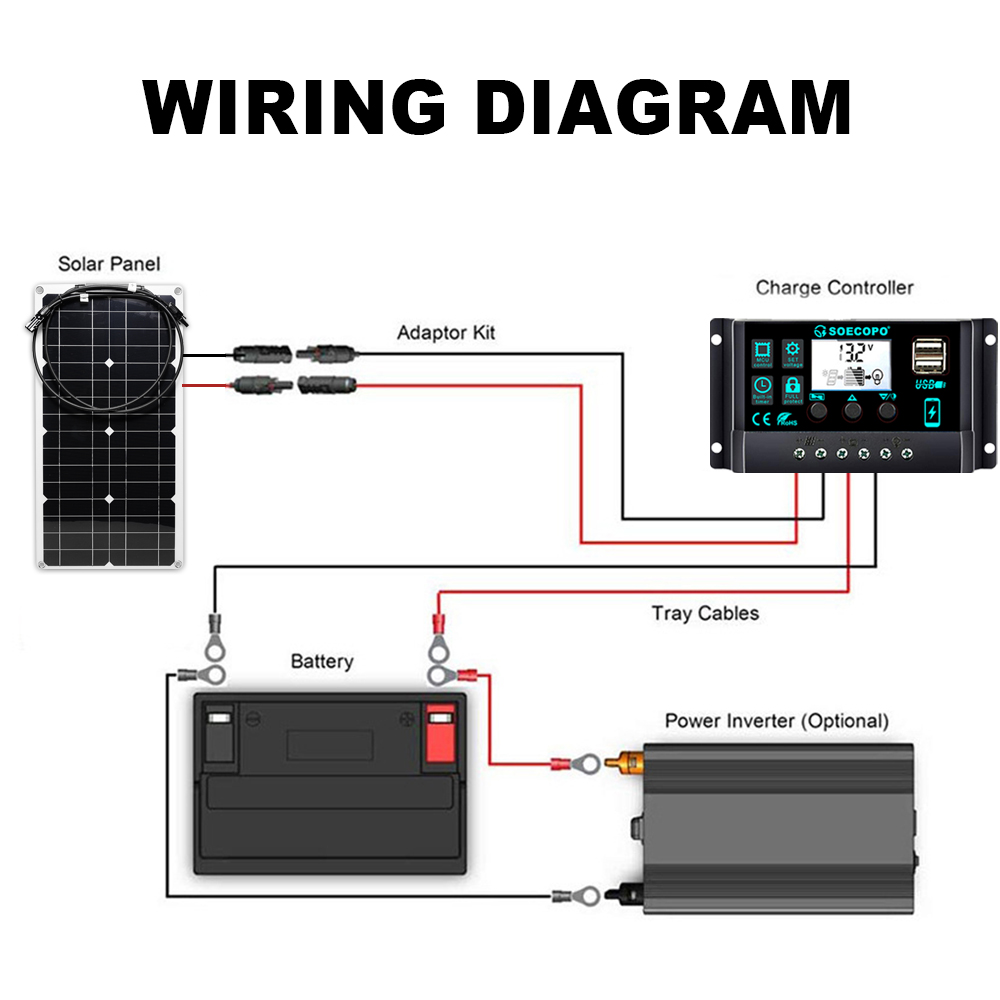

Components Linked: Panels → Controllers → Batteries
2. Mobile Power Solutions
*Secure RV/boat solar wiring against vibration damage - passed 5G vibration test*
Ideal For: Curved surfaces (vans, marine decks)
3. Off-Grid Installations
*Build disaster-ready systems: 10-set kit wires 5kW array in 45 mins*
User Case: Remote clinics, farm irrigation
4. Commercial Projects
*Electrician-approved: 200% faster than screw terminals (time-motion study data)*
🔍 Technical Deep Dive
Material Science
Shell: Thermoplastic Polyurethane (TPU)
82% better impact resistance vs. standard PVC
Halogen-free flame retardant (IEC 62852)
Contacts: Nickel-plated brass
500+ mating cycles (IEC 60512)
Performance Data
Test Result
Water Immersion No leakage (1m/30min)
Thermal Shock 25 cycles (-40°C↔105°C)
Salt Spray 720h no corrosion
Flammability UL94 V-0 certified
⚖️ Compliance Statement
*This product meets IEC 62852:2014 standards for photovoltaic connectors. It is compatible with major solar systems worldwide. All designs are independently developed without association with third-party trademarks.*
